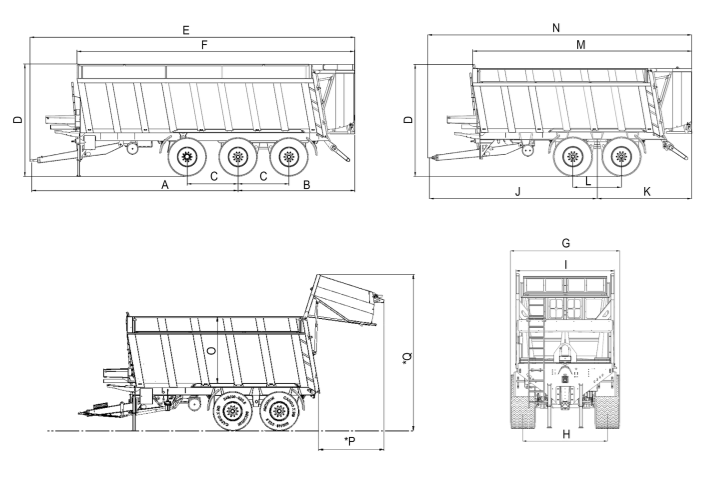

| MUDEL | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | K (mm) | L (mm) | M (mm) | N (mm) | O (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HMFT 282 | – | – | – | 3580 | – | 6300 | 2760 | 2200 | 2550 | 5430 | 2755 | 1480 | 6650 | 8250 | 1600+300 |
| HMFT 269 | – | – | – | 3725 | – | 7000 | 2800 | 2200 | 2550 | 5600 | 2935 | 1480 | 7125 | 8600 | 1600+500 |
| HMFT 280 | – | – | – | 3735 | – | 8000 | 2800 | 2200 | 2550 | 6425 | 3400 | 1820 | 8120 | 9890 | 1600+500 |
| HMFT 380 | 6430 | 3400 | 1650 | 3630 | 9895 | 8000 | 2760 | 2200 | 2550 | – | – | – | – | – | 1600+500 |
| HMFT 390 | 7040 | 3810 | 1820 | 3745 | 10915 | 9000 | 2800 | 2200 | 2550 | – | – | – | – | – | 1600+500 |
| HMFT 391 | 7040 | 3810 | 1820 | 3995 | 10915 | 9000 | 2850 | 2200 | 2550 | – | – | – | – | – | 1800+500 |
| HMFT 398 | 7635 | 4105 | 1820 | 3995 | 11805 | 9800 | 2850 | 2200 | 2550 | – | – | – | – | – | 1800+500 |
| MUDEL | MAHUTAVUS (m3) | TÜHIMASS (KG) | RATTAD | KEERAV SILD | HÜDROPIDUR | VEDRUSTUS |
|---|---|---|---|---|---|---|
| HMFT 282 | 28/18 (TANDEM) | 6350 | 560/60 (R22.5) | 2. SILD | 150 Tam. 420×180 | TANDEM 26 TN |
| HMFT 269 | 35/22 (TANDEM) | 7250 | 600/55 (R26.5) | 2. SILD | 150 Tam. 420×180 | TANDEM 26 TN |
| HMFT 280 | 40/26 (TANDEM) | 8050 | 650/55 (R26.5) | 2. SILD | 150 Tam. 420×180 | TANDEM 32 TN |
| HMFT 380 | 40/26 (TRIDEM) | 8400 | 560/60 (R22.5) | 1. JA 3. SILD | 150 Tam. 420×180 | TRIDEM 39 TN |
| HMFT 390 | 46/30 (TRIDEM) | 10300 | 600/55 (R26.5) | 1. JA 3. SILD | 150 Tam. 420×180 | TRIDEM 48 TN |
| HMFT 391 | 50/33 (TRIDEM) | 10900 | 650/55 (R26.5) | 1. JA 3. SILD | 150 Tam. 420×180 | TRIDEM 48 TN |
| HMFT 398 | 55/37 (TRIDEM) | 11700 | 650/55 (R26.5) | 1. JA 3. SILD | 150 Tam. 420×180 | TRIDEM 48 TN |
